• Size: 10.1 inches

• Resolution: 1024*600

• Type: 1 Din

• OS: Android 10 Q

• CPU: Quad-core Processor

• RAM: DDR3 2GB

• Nand Memory: 16GB

• SKU: AA0552B

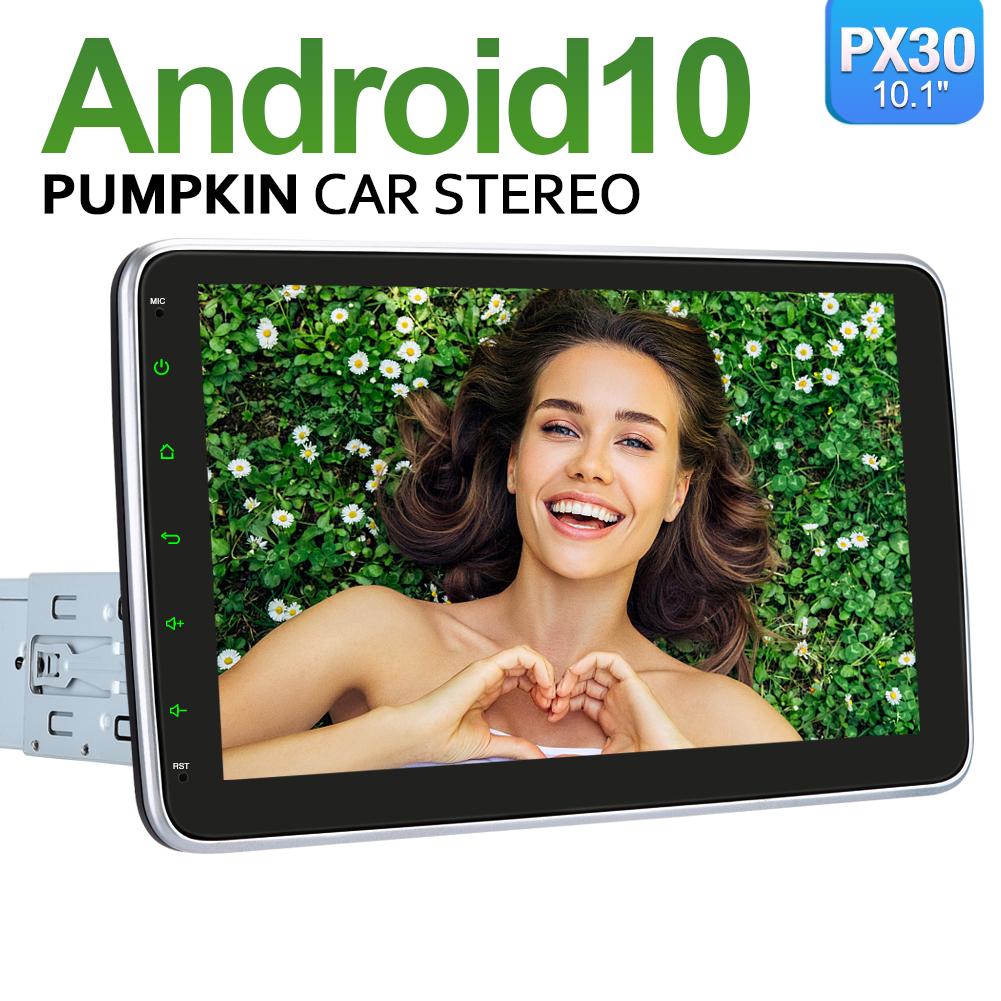

Pumpkin 10.1 Inch Android 10 Single Din Car Audio/Stereo with Adjustable Screen Support Carplay, OBD2, Reverse Camera

Product description

1. 10.1 inch single din Quad-core Android 10 car stereo with 2gb ram and 16gb rom, which can supports multiple functions, like USB, SD, WIFI ,Mirrorlink, DAB ,OBD2, Carplay, Android Auto,Reverse Camera etc.  it also comes with high-quality 6686 radio IC for better AM /FM/ RDS reception.

2. With high-definition Adjustable screen, the angles design make screen can be freely rotated to effectively avoid screen glare. support 1080P HD video, subwoofer audio output and separate control, support mirror link.You can connect your iPhone via wireless or Android smart-phone via USB cable to access some of your favorite apps directly on car dash.support RDS digital radio,or use Pumpkin NA7021B external DAB (optional) for digital radio function.

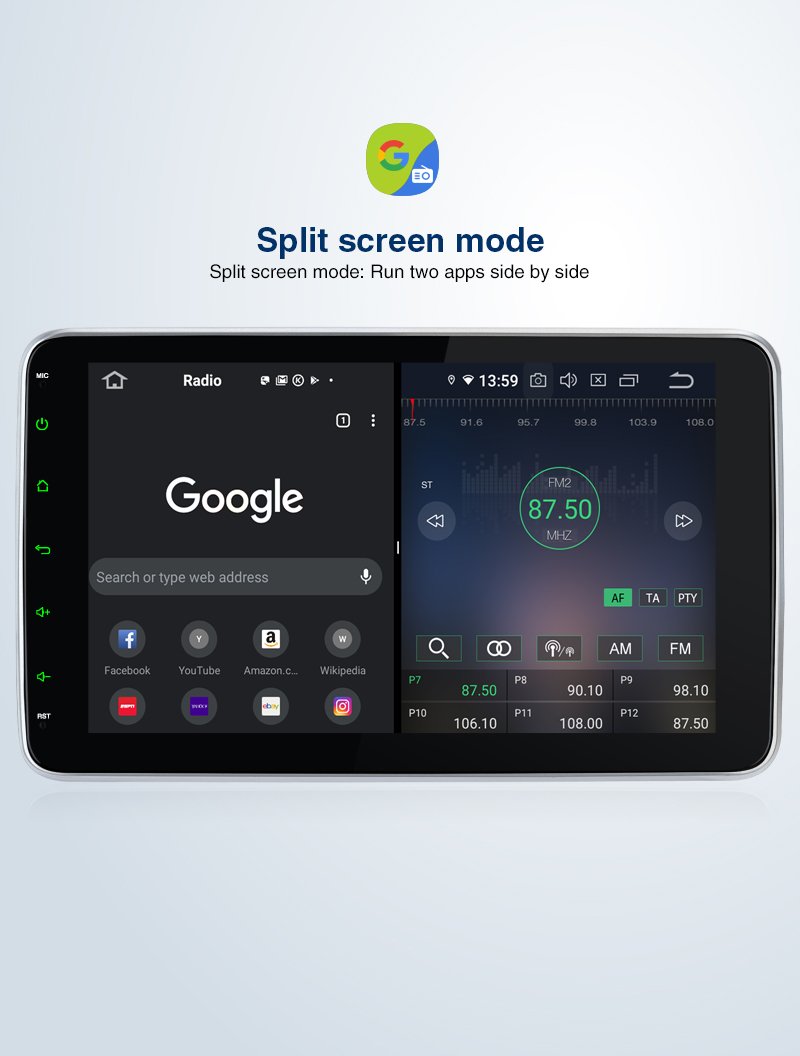

3. Split screen mode allows running two applications side by side.You can listen radio while navigating, or visit the website while listening music. support GPS function, Built in Dual USB Port (maximum support 128GB), High-speed wifi connection,rear camera (camera optional).

4. With single din size installation option to meet the installation needs of different car models.

5. Please compare the dimensions, shape of our unit with the central console of your car before purchasing.

6. Built-In/ External Microphone for hands-free calling.Support audio streaming, Phone Book, quick search contacts function.Support audio / video output, OBDII.

Specifications

General:

OS: Android 10 Q

CPU: Quad-core Processor

RAM: DDR3 2GB

Nand Memory: 16GB

Radio IC: NXP TEF6686

Bluetooth: BT 4.0

Audio output: 4*45W max

Cold Boot time: about 25-30s

EQ

Supports subwoofer audio output, and control it separately.

Max audio output: 4 X 45W,

Signal-To-Noise Ratio: >55db

Radio

AM/FM tuner built in (worldwide)

AM frequency range: 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia)

FM frequency range: 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.0 (Russia)

RDS Radio: Yes

Screen:

Screen Size: 10.1-Inch Screen

Resolution: 1024*600

Capacitive Touch Screen (5 points)

Image Brightness /Contrast/ Color Adjustable

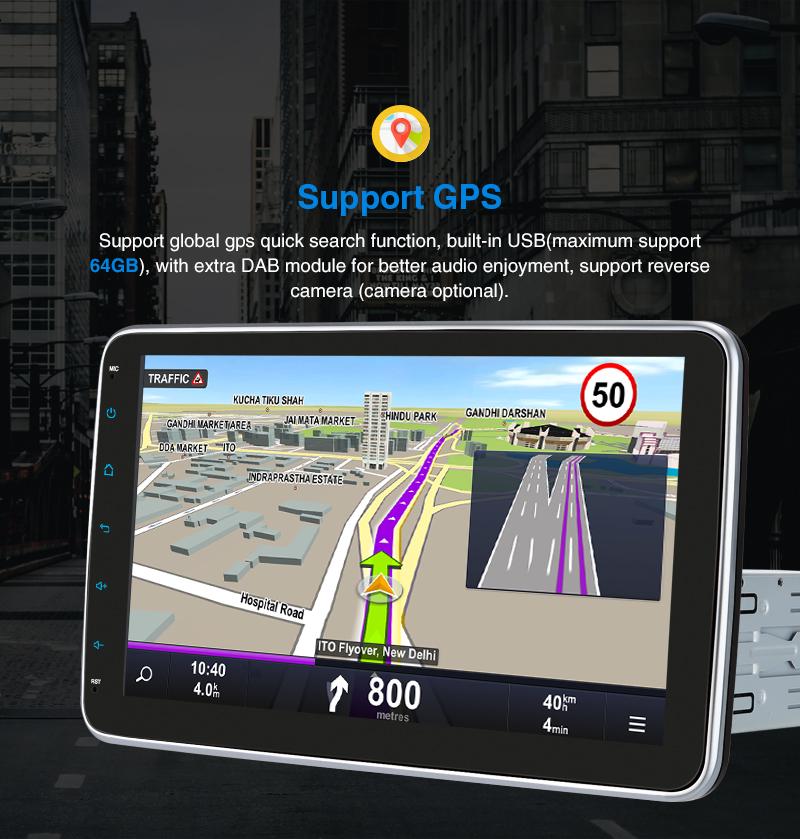

GPS:

Support online and off-line navigation app, support 3D Maps and voice guidance, your long journey will no longer be bothered by the nightmare of getting lost.

Voice Guidance: Yes

3D Map: Yes

(Support radio/Bluetooth/USB/ playback while navigating.)

Bluetooth 4.0:

Built-In Microphone in the control panel for hands free calling function

External microphone also included for free clear voice calling

Support Bluetooth audio player/Phone Book function

(Attention: This function can only be realized when the mobile phone supports Bluetooth Audio Output/Contacts Output)

Support Bluetooth Connection for iPhones/ Most Android Phones/ Even some None Smart Phone

(Attention: The Bluetooth just for audio stream transfer, it doesn’t support file transfer or Internet tethering.)

Phone Mirroring

Mirror your phone on the 10.1 inch screen.

For Android phone, you can mirror and control on the unit via USB cable connection ,
Air Play For iPhone, you can just mirror on the unit via Wi-Fi connection, cannot control

Steering Wheel Control

Change the track, volume, etc. conveniently without taking your hands off the steering wheel, which makes your driving much safer.

(Attention: Only support resistance based analog signal input steering wheel)

DAB+ Digital Radio (Extra DAB+ box NA7021B required)

Digital Audio Broadcasting allows you multi-regional music with your local well-known and also new channels. CD sound quality and noise-free in excellent transmission make DAB Radio a special experience in the vehicle.

which make DAB broadly accessible to most of Europe.

OBD2 (Extra device required)

Compatible: Most of Bluetooth type ELM327 OBD2 scanner and wifi OBD2 (Search Y0004/Y0034/VE0001B on our store)

Compatible Application: Torque

Display Data: Real-time data and trouble codes from vehicles computer.

(Attention: Few cars may not support the ECU reading accessing, those cars will not work this function.)

Cam-In(Extra device required)

Support RCA type reverse camera input.

WIFI: Built in WIFI modem

Direct turn on WIFI function to search and connect to any free WIFI hotspots

USB:

Built in USB Port

Support USB drive up to 128GB with FAT32 or ntfs format

Support Audio Formats: MP3/WMA/WAV/APE/FLAC/OGG/AC3, etc.

Support Video Formats: RMVB/AVI/MPG/MPEG/VOB/MOV/ASF/FLV/3GP/MP4, etc.

AV Output

For this unit, it can output almost everything to your headrests, even you play the video from USB /online YouTube video. Most head units in the market can only output the DVD video to the headrest.

Multi-color button light

Panel buttons light RGB color are available, Already preset 7 colors of indicator buttons, you may change it freely, you can also set other colors to match your car.

OSD Language:

English, Russian, Spanish, Turkish, Portuguese, Arabic, Chinese, Italian, German, French, Thai,Hebrew,Danish,Hungarian,Dutch,Polish,Finnish,Greek,Bulgarian,Belgian,Swedish,

etc.
